Standard One Hole Copper Cable Lugs (Middle East)

Export-Series-One-Hole-Lugs

Standard One Hole Copper Cable Lugs (Middle East)

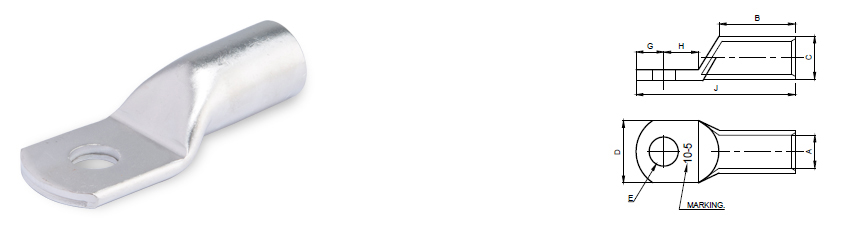

PART NO Cable mm2 Dimensions mm
Stud Size Barrel ID Barrel OD Palm Width Barrel Length Stud Distance from Barrel Stud Distance from Top Total Length
E A C D B H G J
CWN2.55 2.5 5.3 2.4 4 10 8 6 5 22
CWN2.56 2.5 6.4 2.4 4 10 8 6 5 22
CWN45 4 5.3 3.1 4.8 10 8 6 5 22
CWN46 4 6.4 3.1 4.8 10 8 6 5 22
CWN65 6 5.3 4 6 10 10 7 6 26
CWN66 6 6.4 4 6 10 10 7 6.5 26
CWN68 6 8.5 4 6 14 10 9 9 31
CWN610 6 10.5 4 6 16 10 10 10 33
CWN105 10 5.3 4.4 6 10 11 7.5 6.5 28
CWN106 10 6.5 4.4 6 10 11 7.5 6.5 28
CWN108 10 8.5 4.4 6 13 12 9.5 8.5 33
CWN1010 10 10.5 4.4 6 16 12 12 12 39
CWN1012 10 13 4.4 6 16 12 12 12 39
CWN165 16 5.3 5.5 8 12 12 8 6.5 30.5
CWN166 16 6.5 5.5 8 12 12 8 6.5 30.5
CWN168 16 8.5 5.5 8 15 12 10 8.5 35.5
CWN1610 16 10.5 5.5 8 17 12 11 11 39
CWN1612 16 13 5.5 8 17 12 13 13 43
CWN255 25 5.3 6.8 9 13 13 7 5 32
CWN256 25 6.5 6.8 9 13 13 7 5 32
CWN258 25 8.5 6.8 9 14.5 13 10 5 38
CWN2510 25 10.5 6.8 9 17 13 12 6 43
CWN2512 25 13 6.8 9 18 13 12 6 43
CWN2514 25 15 6.8 9 21 13 13 6 46
CWN356 35 6.5 8.2 11 16 16 7.5 7 38
CWN358 35 8.5 8.2 11 16 16 10 6 42
CWN3510 35 10.5 8.2 11 18 16 12 7 47
CWN3512 35 13 8.2 11 18 16 15 7 53
CWN3514 35 15 8.2 11 21 16 15 7 53
CWN506 50 6.5 9.5 12 18 19 10 7 46
CWN508 50 8.5 9.5 12 18 19 10 7 46
CWN5010 50 10.5 9.5 12 18 19 12 7 50
CWN5012 50 13 9.5 12 19 19 13 7 52
CWN5014 50 15 9.5 12 21 19 14 7 54
CWN5016 50 17 9.5 12 21 19 14 7 54
CWN706 70 6.5 11.2 14.7 21 21 10 8 49
CWN708 70 8.5 11.2 14.7 21 21 10 8 49
CWN7010 70 10.5 11.2 14.7 21 21 12 8 53
CWN7012 70 13 11.2 14.7 22 21 13 8 55
CWN7014 70 15 11.2 14.7 22 21 16 8 61
CWN7016 70 17 11.2 14.7 26 21 16 8 63
CWN958 95 8.5 13.3 17 25 24 12 9 57
CWN9510 95 10.5 13.3 17 25 24 12 9 57
CWN9512 95 13 13.3 17 25 24 13 10 60
CWN 9514 95 15 13.3 17 25 24 16 10 67
CWN9516 95 17 13.3 17 26 24 16 10 67
CWN9520 95 21 13.3 17 28 24 17 10 68
CWN1208 120 8.5 15 19.5 28 27 14 10 65
CWN12010 120 10.5 15 19.5 28 27 14 10 65
CWN12012 120 13 15 19.5 28 27 14 10 65
CWN12014 120 15 15 19.5 28 27 15 10 68
CWN12016 120 17 15 19.5 28 27 15 10 68
CWN12020 120 21 15 19.5 28 27 15 10 68
CWN1508 150 8.5 16.5 21 30 30 14 12 70
CWN15010 150 10.5 16.5 21 30 30 14 12 70
CWN15012 150 13 16.5 21 31 30 15 12 72
CWN15014 150 15 16.5 21 31 30 15 12 72
CWN15016 150 17 16.5 21 31 30 15 12 72
CWN15020 150 21 16.5 21 31 30 15 12 72
CWN18510 185 10.5 19 24 35 32 18 14 83
CWN18512 185 13 19 24 35 32 18 14 83
CWN18514 185 15 19 24 35 32 18 14 83
CWN18516 185 17 19 24 35 32 18 14 83
CWN18520 185 21 19 24 35 32 18 14 83
CWN24010 240 10.5 21 26 39 38 21 14 94
CWN24012 240 13 21 26 39 38 21 14 94
CWN24014 240 15 21 26 39 38 21 14 94
CWN24016 240 17 21 26 39 38 21 14 94
CWN24020 240 21 21 26 39 38 21 14 94
CWN30010 300 10.5 23.5 29.5 43 47 24 15 111
CWN30012 300 13 23.5 29.5 43 47 24 15 111
CWN30014 300 15 23.5 29.5 43 47 24 15 111
CWN30016 300 17 23.5 29.5 43 47 24 15 111
CWN30020 300 21 23.5 29.5 43 47 24 15 111
CWN40010 400 10.5 27 34 49 46 24 19 114
CWN40012 400 13 27 34 49 46 24 19 114
CWN40014 400 15 27 34 49 46 24 19 114
CWN40016 400 17 27 34 49 46 24 19 114
CWN40020 400 21 27 34 49 46 24 19 114
CWN50012 500 13 31 37 56 72 24 23 144
CWN50014 500 15 31 37 56 72 24 23 144
CWN50016 500 17 31 37 56 72 24 23 144
CWN50020 500 21 31 37 56 72 24 23 144
CWN63010 630 10.5 34 40 59 72 24 23 144
CWN63012 630 13 34 40 59 72 24 23 144
CWN63014 630 15 34 40 59 72 24 23 144
CWN63016 630 17 34 40 59 72 24 23 144
CWN63020 630 21 34 40 59 72 24 23 144
