Standard Two Hole Copper Cable Lugs

Export-Series-Hole-Lugs

Standard Two Hole Copper Cable Lugs

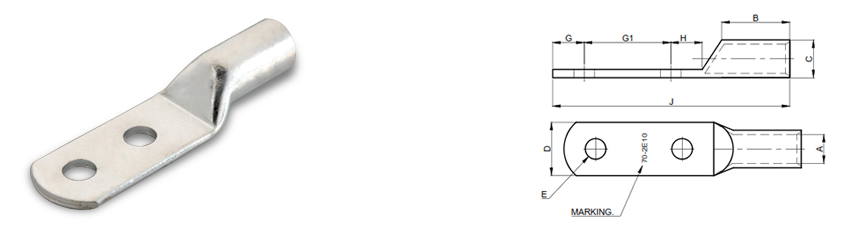

PART NO AREA mm2 E A C D B G G1 H J
CWTH502E10 50 10.5 9.5 12.4 17 25 16.75 44.5 16.75 109
CWTH502E12 50 13 9.5 12.4 17 25 16.75 44.5 16.75 109
CWTH702E10 70 10.5 11.3 14.7 21 30 16.25 44.5 16.25 114
CWTH702E12 70 13 11.3 14.7 21 30 16.25 44.5 16.25 114
CWTH952E10 95 10.5 13.5 17.4 25 30 16.25 44.5 16.25 116
CWTH952E12 95 13 13.5 17.4 25 30 16.25 44.5 16.25 116
CWTH1202E10 120 10.5 15 19.4 27.5 35 16.25 44.5 16.25 122
CWTH1202E12 120 13 15 19.4 27.5 35 16.25 44.5 16.25 122
CWTH1502E10 150 10.5 16.5 21.2 30 40 15.25 44.5 15.25 126
CWTH1502E12 150 13 16.5 21.2 30 40 15.25 44.5 15.25 126
CWTH1852E10 185 10.5 18.5 23.5 33.5 42 16.75 44.5 16.75 132
CWTH1852E12 185 13 18.5 23.5 33.5 42 16.75 44.5 16.75 132
CWTH2402E10 240 10.5 21 26.5 38.5 50 17.25 44.5 17.25 143
CWTH2402E12 240 13 21 26.5 38.5 50 17.25 44.5 17.25 143
CWTH3002E12 300 13 23.5 30 43 55 14.75 44.5 14.75 144
CWTH4002E12 400 13 28.5 36.5 52.5 60 13.25 44.5 13.25 149
CWTH5002E12 500 13 30 39 56 65 15.25 44.5 15.25 160
