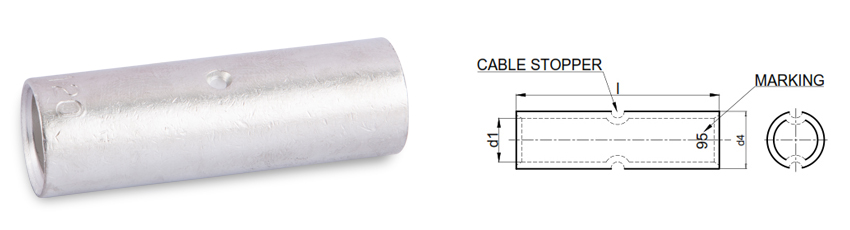

| Copper Cable Connectors | ||||
| PART NO | CABLE SIZE | C | A | J |
| CWDINC16 | 16 | 5.5 | 8.5 | 50 |
| CWDINC25 | 25 | 7 | 10 | 50 |
| CWDINC35 | 35 | 8.2 | 12.5 | 50 |
| CWDINC50 | 50 | 10 | 14.5 | 56 |
| CWDINC70 | 70 | 11.5 | 16.5 | 56 |
| CWDINC95 | 95 | 13.5 | 19 | 70 |
| CWDINC120 | 120 | 15.5 | 21 | 70 |
| CWDINC150 | 150 | 17 | 23.5 | 80 |
| CWDINC185 | 185 | 19 | 25.5 | 85 |
| CWDINC240 | 240 | 21.5 | 29 | 90 |
| CWDINC300 | 300 | 24.5 | 32 | 100 |
| CWDINC400 | 400 | 27.5 | 38.5 | 150 |
| CWDINC500 | 500 | 31 | 42 | 160 |
| CWDINC625 | 625 | 34.5 | 44 | 160 |
