Copper Cable Connectors as per DIN46267

ZDIN46267 CONNECTORS

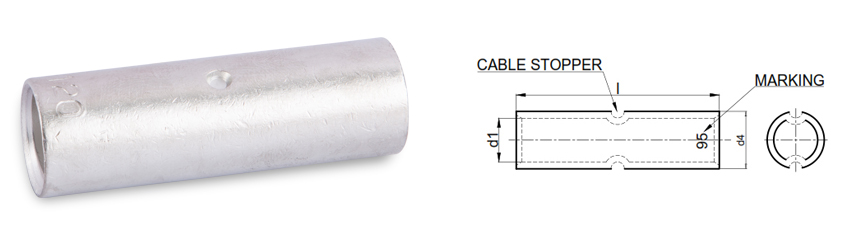

Copper Cable Connectors as per DIN46267
PART NO CROSS mm2 SECTION d1 d4 l
CWDIN6 6 3.8 5.5 30
CWDIN10 10 4.5 6 30
CWDIN16 16 5.5 8.5 50
CWDIN25 25 7 10 50
CWDIN35 35 8.2 12.5 50
CWDIN50 50 10 14.5 56
CWDIN70 70 11.5 16.5 56
CWDIN95 95 13.5 19 70
CWDIN120 120 15.5 21 70
CWDIN150 150 17 23.5 80
CWDIN185 185 19 25.5 85
CWDIN240 240 21.5 29 90
CWDIN300 300 24.5 32 100
CWDIN400 400 27.5 38.5 150
CWDIN500 500 31 42 160
CWDIN625 625 34.5 44 160
CWDIN800 800 40 52 200
CWDIN1000 1000 44 58 200
