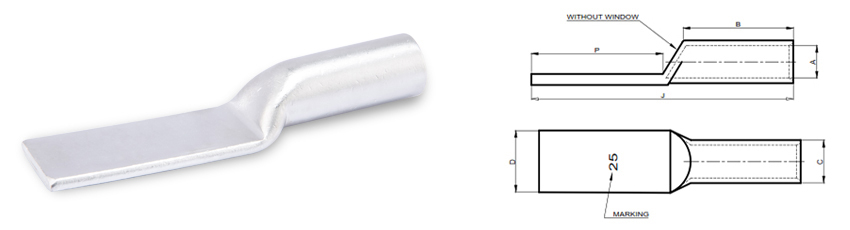

| Long Barrel Long Palm(Australia) | |||||||
| PART NO | Cable Mm2 | A | C | D | B | P | J |
| CWAUSFP16 | 16 | 5.5 | 7.9 | 11 | 21 | 61 | 86 |
| CWAUSFP25 | 25 | 7.1 | 9.5 | 15 | 29 | 61 | 94 |
| CWAUSFP35 | 35 | 8.2 | 11.2 | 16 | 35 | 72 | 112 |
| CWAUSFP50 | 50 | 9.5 | 12.8 | 19 | 44 | 80 | 130 |
| CWAUSFP70 | 70 | 11.2 | 14.3 | 21 | 48 | 100 | 154 |
| CWAUSFP95 | 95 | 13.5 | 17.4 | 25 | 54 | 100 | 161 |
| CWAUSFP120 | 120 | 15.6 | 20.6 | 29 | 60 | 100 | 168 |
| CWAUSFP150 | 150 | 16.7 | 22.5 | 32 | 60 | 100 | 169 |
| CWAUSFP185 | 185 | 18.4 | 24.2 | 35 | 64 | 100 | 174 |
| CWAUSFP240 | 240 | 21.2 | 28.2 | 40 | 80 | 100 | 192 |
| CWAUSFP300 | 300 | 23.5 | 31.3 | 45 | 90 | 105 | 208 |
| CWAUSFP400 | 400 | 26.8 | 34.8 | 50 | 100 | 110 | 225 |
| CWAUSFP500 | 500 | 30.0 | 39.0 | 56 | 105 | 110 | 230 |
| CWAUSFP630 | 630 | 34.0 | 45.0 | 63 | 115 | 110 | 242 |
