Standard One Hole Copper Cable Lugs (Australia)

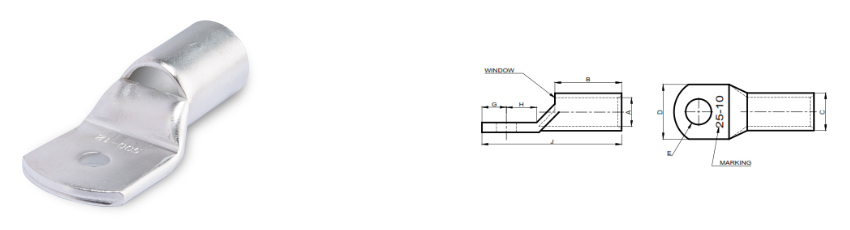

ONE HOLE STANDARD LUGS

Standard One Hole Copper Cable Lugs (Australia)
PART NO Cable Mm2 E (H.D.) A C D B H G J
CWAUS1.54 1.5 4.2 1.8 3.7 8 7 5 4 18
CWAUS1.55 1.5 5.3 1.8 3.7 8 7 5 4 18
CWAUS1.56 1.5 6.4 1.8 3.7 10 7 7 4 20
CWAUS2.54 2.5 4.2 2.4 4 8 8 5 4 19
CWAUS2.55 2.5 5.3 2.4 4 10 8 6 5 21
CWAUS2.56 2.5 6.4 2.4 4 10 8 6 5 21
CWAUS2.58 2.5 8.4 2.4 4 11 7 9 6 24
CWAUS45 4 5.3 3.1 4.8 10 9 6 5 22
CWAUS46 4 6.4 3.1 4.8 10 9 6 5 22
CWAUS48 4 8.4 3.1 4.8 12 9 8 6 26
CWAUS410 4 10.5 3.1 5.5 13 9 11 8 32
CWAUS64 6 4.2 3.8 5.5 10 9 6 5 23
CWAUS65 6 5.3 3.8 5.5 10 9 6 5 23
CWAUS66 6 6.4 3.8 5.5 12 9 9 6 27
CWAUS68 6 8.4 3.8 5.5 12 9 9 6 27
CWAUS610 6 10.5 3.8 6.2 16 10 11 8 32
CWAUS612 6 13 7.5 9.1 16 10 11 8 38
CWAUS105 10 5.3 4.7 7.1 12 10 7 6 27
CWAUS106 10 6.4 4.7 7.1 12 10 7 6 27
CWAUS108 10 8.4 4.7 7.1 14 10 8 7 29
CWAUS1010 10 10.5 4.7 7.1 16 10 11 8 32
CWAUS1012 10 13 4.7 7.1 18 10 13 10 37
CWAUS166 16 6.4 5.5 7.9 11 19 8 6 37
CWAUS168 16 8.4 5.5 7.9 14 19 9 7 39
CWAUS1610 16 10.5 5.5 7.9 16 19 10 8 41
CWAUS1612 16 13 5.5 7.9 18 19 13 10 46
CWAUS256 25 6.4 7.1 9.5 14 21 9 7 41
CWAUS258 25 8.4 7.1 9.5 14 21 9 7 41
CWAUS2510 25 10.5 7.1 9.5 16 21 10 9 44
CWAUS2512 25 13 7.1 9.5 18 21 13 10 48
CWAUS356 35 6.4 8.2 11.2 16 21 10 9 45
CWAUS358 35 8.4 8.2 11.2 16 21 10 9 45
CWAUS3510 35 10.5 8.2 11.2 18 21 10 9 46
CWAUS3512 35 13 8.2 11.2 20 21 13 11 50
CWAUS506 50 6.4 9.5 12.8 18 22 11 9 48
CWAUS508 50 8.4 9.5 12.8 18 22 11 9 48
CWAUS5010 50 10.5 9.5 12.8 18 22 11 9 48
CWAUS5012 50 13 9.5 12.8 21 22 13 11 52
CWAUS706 70 6.4 11.2 14.3 21 24 13 11 54
CWAUS708 70 8.4 11.2 14.3 21 24 13 11 54
CWAUS7010 70 10.5 11.2 14.3 21 24 13 11 54
CWAUS7012 70 13 11.2 14.3 21 24 13 11 54
CWAUS7016 70 17 11.2 14.3 28 24 18 16 64
CWAUS958 95 8.4 13.5 17.4 25 27 14 12 60
CWAUS9510 95 10.5 13.5 17.4 25 27 14 12 60
CWAUS9512 95 13 13.5 17.4 25 27 14 12 60
CWAUS9516 95 17 13.5 17.4 28 27 16 14 64
CWAUS1208 120 8.4 15.6 20.6 29 30 14 12 64
CWAUS12010 120 10.5 15.6 20.6 29 30 14 12 64
CWAUS12012 120 13 15.6 20.6 29 30 14 12 64
CWAUS12016 120 17 15.6 20.6 29 30 16 16 70
CWAUS15010 150 10.5 16.7 22.5 32 30 16 16 71
CWAUS15012 150 13 16.7 22.5 32 30 20.5 20.5 80
CWAUS15016 150 17 16.7 22.5 32 30 20.5 20.5 80
CWAUS18510 185 10.5 18.4 24.2 35 32 16 16 74
CWAUS18512 185 13 18.4 24.2 35 32 20.5 20.5 83
CWAUS18516 185 17 18.4 24.2 35 32 20.5 20.5 83
CWAUS24010 240 10.5 21.2 28.2 40 38 21 21 92
CWAUS24012 240 13 21.2 28.2 40 38 21 21 92
CWAUS24016 240 17 21.2 28.2 40 38 21 21 92
CWAUS30012 300 13 23.5 31.3 45 42 23 23 101
CWAUS30016 300 17 23.5 31.3 45 42 23 23 101
CWAUS400BL 400 BL 26.8 34.8 50 44 26 26 114
CWAUS400-12 400 13 26.8 34.8 50 44 28 24 114
CWAUS400-16 400 17 26.8 34.8 50 44 28 24 114
CWAUS500BL 500 BL 30.0 39.0 56 50 28 28 124
CWAUS500-12 500 13 30.0 39.0 56 50 28 28 124
CWAUS500-16 500 17 30.0 39.0 56 50 28 28 124
CWAUS630BL 630 BL 34.0 45.0 65 58 28 28 134
CWAUS630-12 630 13 34.0 45.0 65 58 28 28 134
CWAUS630-16 630 17 34.0 45.0 65 58 28 28 134
CWAUS800BL 800  BL 39.3 53.3 74 125 62.5 62.5 275
CWAUS1000BL 1000  BL 44.0 60.0 84.6 130 62.5 62.5 295
