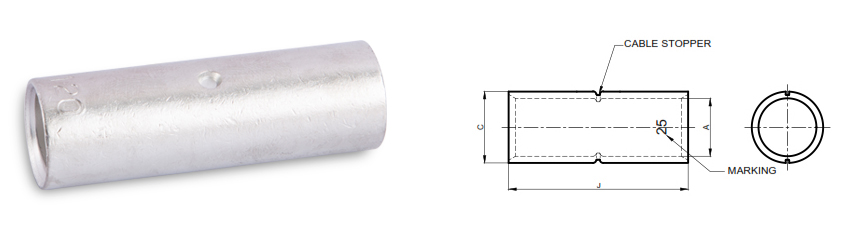

| Standard Copper Connectors | ||||
| PART NO | SQ MM | A | C | J |
| CWC-23 | 2.5 | 2.0 | 3.7 | 15.0 |
| CWC-3 | 4 | 3.1 | 4.8 | 15.0 |
| CWC-4 | 6 | 3.8 | 5.5 | 15.0 |
| CWC-6 | 16 | 5.3 | 7.1 | 20.0 |
| CWC-7 | 25 | 7.0 | 9.0 | 25.0 |
| CWC-8 | 35 | 8.0 | 10.0 | 30.0 |
| CWC-9 | 50 | 9.2 | 11.2 | 35.0 |
| CWC-10 | 70 | 11.5 | 13.8 | 40.0 |
| CWC-11 | 95 | 12.8 | 15.6 | 45.0 |
| CWC-12 | 120 | 14.8 | 17.8 | 50.0 |
| CWC-13 | 150 | 16.0 | 19.6 | 55.0 |
| CWC-14 | 185 | 18.0 | 22.0 | 60.0 |
| CWC-20 | 225 | 20.0 | 24.0 | 65.0 |
| CWC-15 | 240 | 22.0 | 26.0 | 65.0 |
| CWC-16 | 300 | 24.0 | 28.7 | 75.0 |
| CWC-17 | 400 | 28.0 | 33.2 | 90.0 |
| CWC-18 | 500 | 30.0 | 36.0 | 95.0 |
| CWC-19 | 625 | 35.0 | 41.5 | 105.0 |
| CWC-21 | 800 | 39.0 | 46.3 | 120.0 |
| CWC-22 | 1000 | 43.0 | 53.8 | 150.0 |
