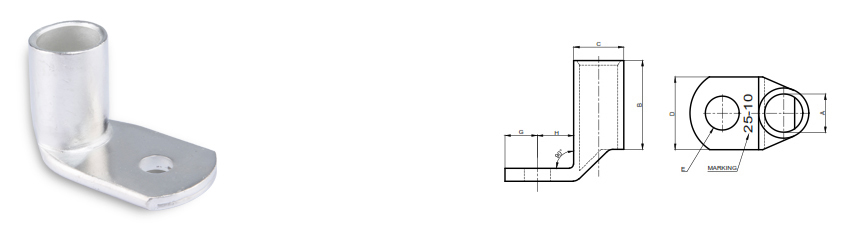

One hole Copper Cable Lugs 90 Degree(Australia)
PART NO Cable Mm2 E (H.D.) A C D B H G
CWAUS105F 10 5.2 4.7 7.1 12 10 6.4 6
CWAUS106F 10 6.5 4.7 7.1 12 10 6.4 6
CWAUS108F 10 8.4 4.7 7.1 14 10 7.5 7
CWAUS1010F 10 10.5 4.7 7.1 16 10 9.5 8
CWAUS1012F 10 13 4.7 7.1 18 11 12.5 10
CWAUS166F 16 6.5 5.5 7.9 11 19 8 7
CWAUS168F 16 8.4 5.5 7.9 14 19 8.4 7
CWAUS1610F 16 10.5 5.5 7.9 16 19 9.5 8
CWAUS1612F 16 13 5.5 7.9 18 19 12.5 10
CWAUS256F 25 6.5 7.1 9.5 14 21 8 7
CWAUS258F 25 8.4 7.1 9.5 14 21 8 7
CWAUS2510F 25 10.5 7.1 9.5 16 21 9 9
CWAUS2512F 25 13 7.1 9.5 18 21 12.5 10
CWAUS356F 35 6.5 8.2 11.2 16 21 9 9
CWAUS358F 35 8.4 8.2 11.2 16 21 9 9
CWAUS3510F 35 10.5 8.2 11.2 18 21 9 9
CWAUS3512F 35 13 8.2 11.2 20 22 12 11
CWAUS506F 50 6.5 9.5 12.8 18 22 9 8
CWAUS508F 50 8.4 9.5 12.8 18 22 9 8
CWAUS5010F 50 10.5 9.5 12.8 18 22 9 8
CWAUS5012F 50 13 9.5 12.8 21 22 12 11
CWAUS706F 70 6.5 11.2 14.3 21 24 12 11
CWAUS708F 70 8.4 11.2 14.3 21 24 12 11
CWAUS7010F 70 10.5 11.2 14.3 21 24 12 11
CWAUS7012F 70 13 11.2 14.3 21 24 12 11
CWAUS7016F 70 17 11.2 14.3 28 24 13 13
CWAUS958F 95 8.4 13.5 17.4 25 27 12.5 12
CWAUS9510F 95 10.5 13.5 17.4 25 27 12.5 12
CWAUS9512F 95 13 13.5 17.4 25 27 12.5 12
CWAUS9516F 95 17 13.5 17.4 28 27 14.5 14
CWAUS1208F 120 8.4 15.6 20.6 29 30 12.5 12
CWAUS12010F 120 10.5 15.6 20.6 29 30 12.5 12
CWAUS12012F 120 13 15.6 20.6 29 30 12.5 12
CWAUS12016F 120 17 15.6 20.6 29 30 14.5 16
CWAUS15010F 150 10.5 16.7 22.5 32 30 14.5 16
CWAUS15012F 150 13 16.7 22.5 32 30 16.5 18
CWAUS15016F 150 17 16.7 22.5 32 30 16.5 18
CWAUS18510F 185 10.5 18.4 24.2 35 32 14.5 16
CWAUS18512F 185 13 18.4 24.2 35 32 16.5 18
CWAUS18516F 185 17 18.4 24.2 35 32 16.5 18
CWAUS24010F 240 10.5 21.2 28.2 40 38 18.5 21
CWAUS24012F 240 13 21.2 28.2 40 38 18.5 21
CWAUS24016F 240 17 21.2 28.2 40 38 18.5 21
CWAUS30012F 300 13 23.5 31.3 45 42 20.5 23
CWAUS30016F 300 17 23.5 31.3 45 42 20.5 23
CWAUS400BLF 400 BL 26.8 34.8 50 44 25.5 24
CWAUS500BLF 500 BL 30.0 39.0 56 50 24.5 27
CWAUS630BLF 630 BL 34.0 45.0 65 58 28.5 32
