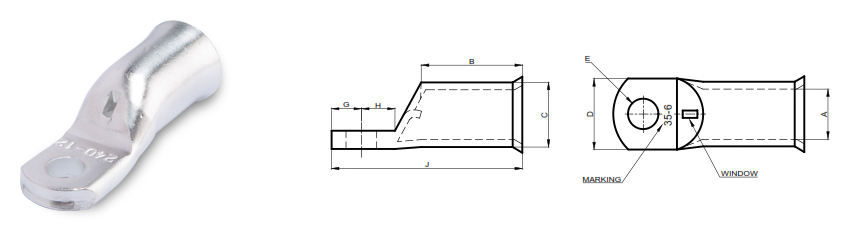

Copper Cable Narrow Palm Lugs(Australia)

NARROW LUG

Copper Cable Narrow Palm Lugs(Australia)
PART NO	Cable Mm2	E (H.D.)	A (I.D.)	C (O.D.)	D	B	H	G	J
CWAUSN356	35	6.20	8.20	11.2	15.00	21	8	7	41
CWAUSN506	50	6.20	9.50	12.8	15.00	22	8	7	43
CWAUSN5010	50	10.20	9.50	12.8	19.00	22	12	9	49
CWAUSN706	70	6.20	11.20	14.3	17.00	24	8.5	6.5	45
CWAUSN7010	70	10.20	11.20	14.3	19.00	24	12	9	51
CWAUSN 958	95	8.20	13.50	17.4	19.00	27	9	8	51
CWAUSN9510	95	10.50	13.50	17.4	19.00	27	12	9	55
CWAUSN1208	120	8.5	15.6	20.6	19.00	30	12	11	61
CWAUSN12010	120	10.2	15.6	20.6	19.00	30	12	11	61
CWAUSN1508	150	8.2	16.7	22.5	19.00	30	15	12	66
CWAUSN15010	150	10.2	16.7	22.5	19.00	30	15	12	66
CWAUSN18510	185	10.5	18.40	24.2	24.50	32	17.5	14.5	74
CWAUSN24010	240	10.2	21.20	28.2	31.00	38	18.5	13.5	82
CWAUSN24012	240	13.00	21.20	28.2	31.00	38	18.5	13.5	82
CWAUSN30010	300	10.50	23.50	31.3	31.00	42	20	12	87
CWAUSN30012	300	13.00	23.50	31.3	31.00	42	20	12	87
