One Hole Long Barrell Copper Cable Lugs(Australia)

ONE HOLE LONG BARREL

One Hole Long Barrell Copper Cable Lugs(Australia)

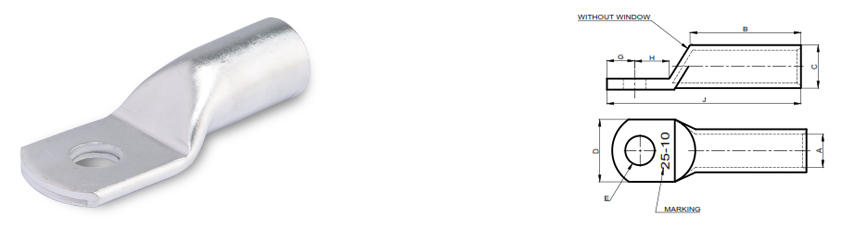

PART NO	Cable Mm2	E	A	C	D	B	H	G	J
CWAUSL106	10	6.5	4.7	7.1	12	18	7	6	35
CWAUSL166	16	6.5	5.5	7.9	11	21	9	7	41
CWAUSL168	16	8.4	5.5	7.9	14	21	9	7	41
CWAUSL258	25	8.4	7.1	9.5	14	29	9	7	49
CWAUSL2510	25	10.5	7.1	9.5	16	29	10	9	52
CWAUSL2512	25	13	7.1	9.5	18	29	13	10	56
CWAUSL358	35	8.4	8.2	11.2	16	35	10	9	59
CWAUSL3510	35	10.5	8.2	11.2	18	35	10	9	59
CWAUSL3512	35	13	8.2	11.2	20	35	13	11	64
CWAUSL5010	50	10.5	9.5	12.8	18	44	10	8	68
CWAUSL5012	50	13	9.5	12.8	21	46	13	11	76
CWAUSL7010	70	10.5	11.2	14.3	21	48	13	11	78
CWAUSL7012	70	13	11.2	14.3	21	48	13	11	78
CWAUSL9510	95	10.5	13.5	17.4	25	54	14	12	87
CWAUSL9512	95	13	13.5	17.4	25	54	14	12	87
CWAUSL12010	120	10.5	15.6	20.6	30	60	14	12	94
CWAUSL12012	120	13	15.6	20.6	30	60	14	12	94
CWAUSL15012	150	13	16.7	22.5	32	60	18	18	105
CWAUSL15016	150	17	16.7	22.5	32	60	18	18	105
CWAUSL18512	185	13	18.4	24.2	36	64	18	18	111
CWAUSL24012	240	13	21.2	28.2	41	80	21	21	134
CWAUSL30016	300	17	23.5	31.3	46	90	23	23	149
CWAUSL400BL	400	BL	26.8	34.8	50	93	28	24	163
CWAUSL500BL	500	BL	30.0	39.0	56	105	27	27	174
CWAUSL630BL	630	BL	34.0	45.0	64.4	110	32	32	191
